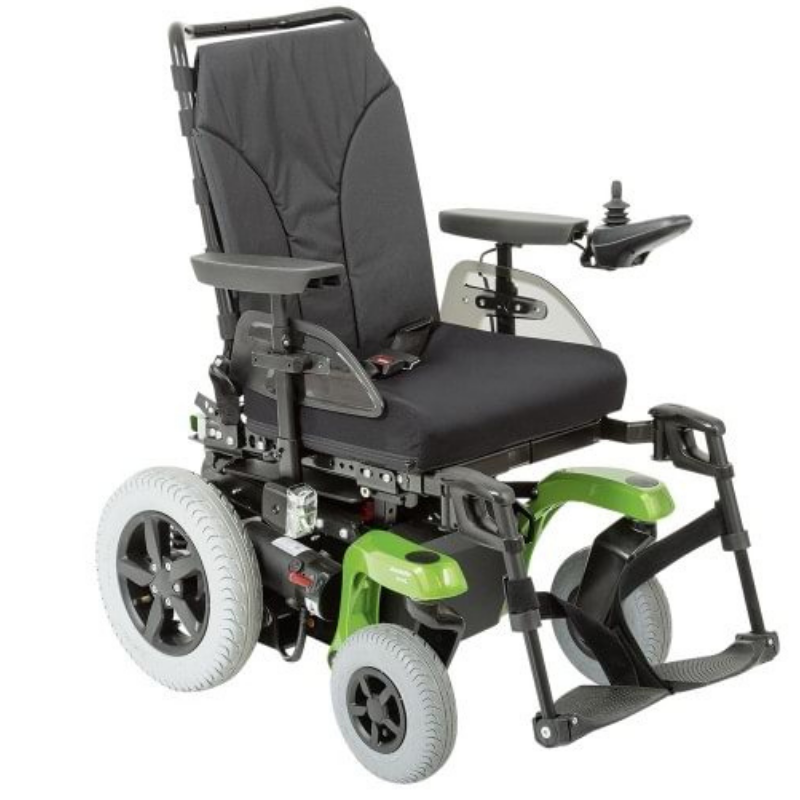

Ottobock Rare Wheel Drive Power Wheelchair Juvo B5/B6 With VR2 or TEN° Controls

OTTOBOCK RARE WHEEL DRIVE POWER WHEELCHAIR JUVO B5/B6 WITH VR2 OR TEN° CONTROLS

Juvo B5/B6 rare-wheel drive power chair is incomparable. With its single-wheel suspension and torsion drive system, it offers intuitive driving characteristics for all fields of application. Whether you're crossing obstacles or driving through depressions, the damping ensures a comfortable ride. Plus, the magnetic LED lighting is easy to attach and remove without tools. The circuit breaker and external power supply make it easy to turn off your wheelchair when needed. The Juvo B5/B6 wheelchair is the perfect choice for anyone looking for an anti-tip roller wheel. The vibration compensation ensures proper positioning of the input module, making it ideal for those using a chin or lip control.

Approved according to ISO 7176-19 for transporting the user in a vehicle while sitting in the wheelchair

➤ Vibration compensation & Gyroscope module

➤ Alternative types of input can be used when standard joysticks don’t offer the best option

➤ Battery capacity 53Ah (C5) for Juvo B5, 63Ah (C5) for Juvo B6

➤ Weight from 107 kg


Quantity must be 1 or more
Sale price
£3,879.00
With VAT Relief
Flash Sale
£4,654.80 Incl. VAT
Regular price

Sale price
£3,879.00
With VAT Relief
£4,654.80 Incl. VAT
Regular price

+ -

# Home Delivery

Express Delivery

Free Engineer Delivery & Installation in 10 Days

#

Financing Available

#

Need Help to place your order

Contact us 01462 708830

A question about your order?

Our customer service is here for you between 9am and 5pm from Monday to Friday on 0208 424 2512 or email us

Product Information

JUVO B5/B6 POWER RARE-WHEEL DRIVE WHEELCHAIR WITH VR2 OR TEN° CONTROLS

Juvo B5/B6 rare-wheel drive power chair offers incomparable driving characteristics for all fields of application. The single-wheel suspension and torsion drive system form the basis for this intuitive drive type gives explicit maneuverability and sturdiness when used. Thanks to the direct pivot point, safe handling, and adequate ground contact is maintained at all times is even with more complex forms of input. Damping when crossing obstacles or driving through depressions improves driving comfort.

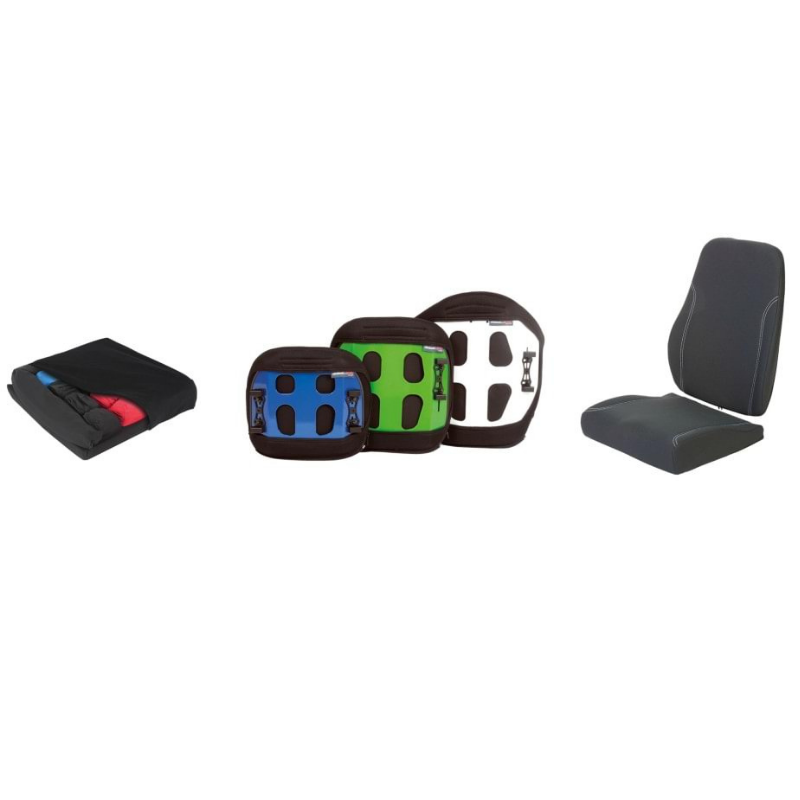

You can choose from two control devices, the VR2 and the TEN°, to ensure that you can easily operate your Juvo every day and variably adjustable seat (VAS), contour package, Baxx line, and premium seat cushions. The biomechanical back support angle adjustment is almost entirely free from uncomfortable shear forces.

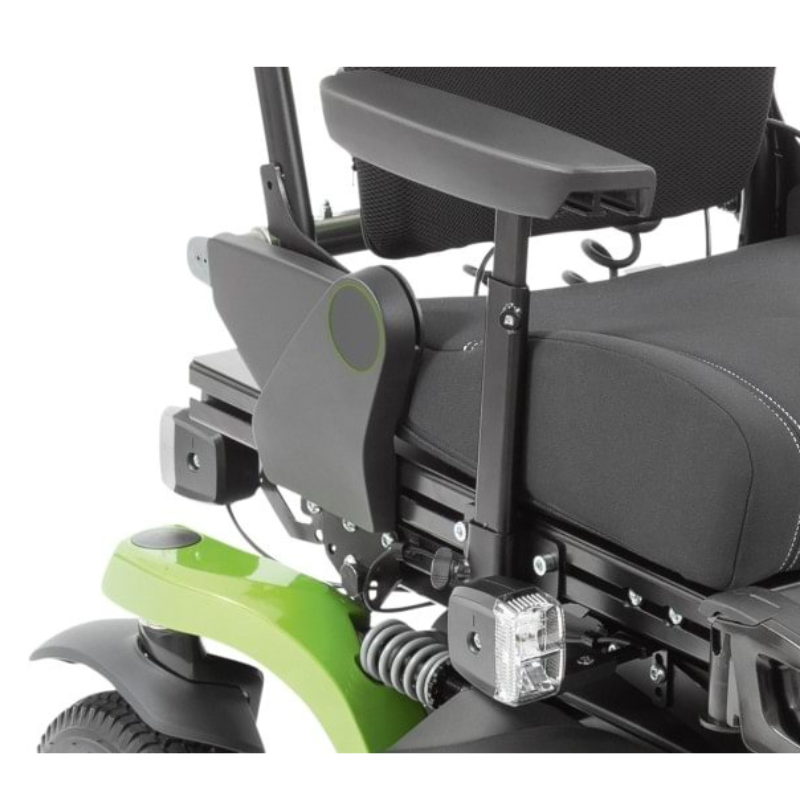

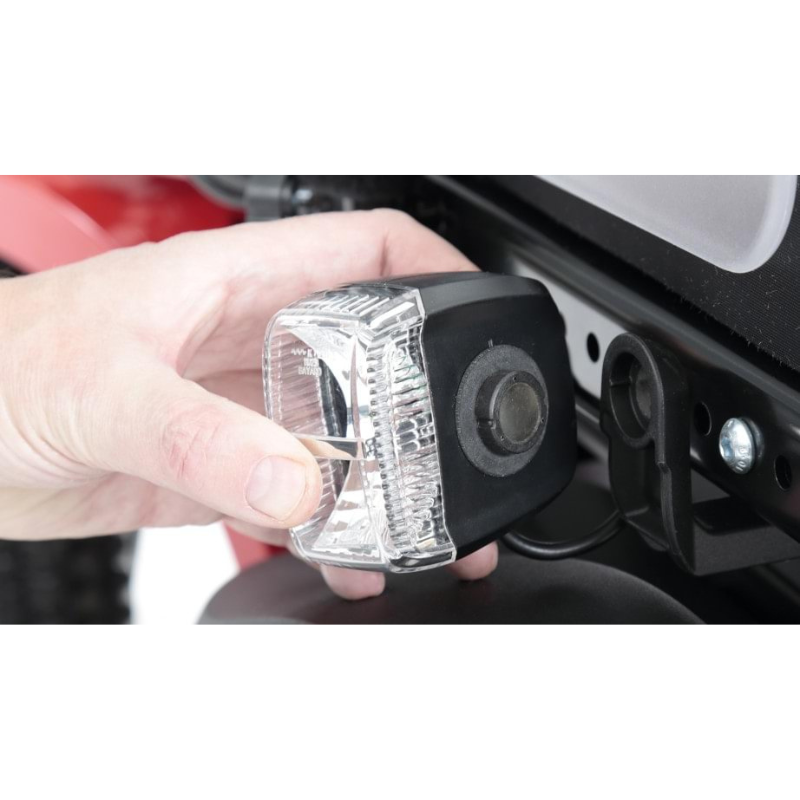

Magnetic LED lighting makes it easy to attach and remove the lighting without the use of tools. If the wheelchair requires servicing, the LED lighting can be removed and used as a torch.

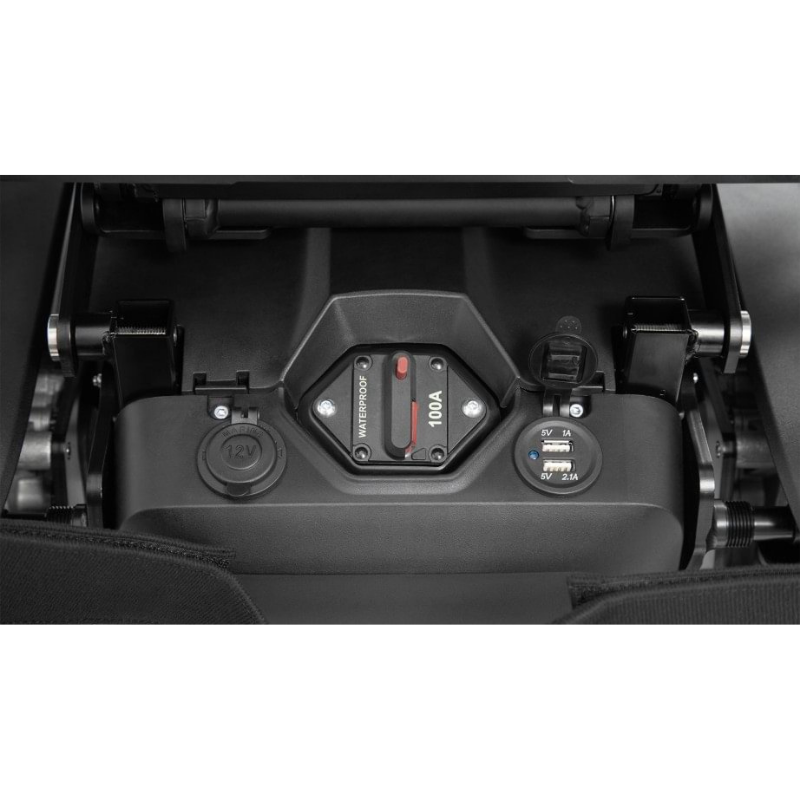

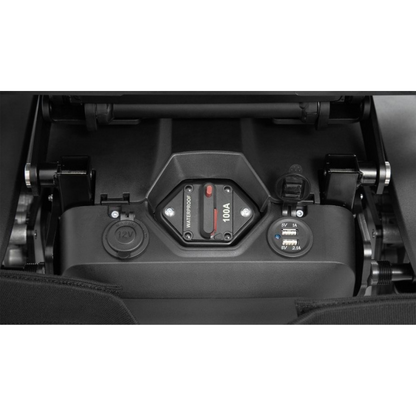

Circuit breakers and external power supply are suitable when it is needed to turn off their wheelchair. The circuit breaker is easily accessible on the front of every Juvo wheelchair. And optional power supplies (USB and/or 12/24 V outlets) ensure that power is always available for your mobile devices.

Anti-tip roller wheels ensure that the wheelchair does not tip over to the front when driving downhill and braking hard (e.g. when the control unit is turned off) and they fold back when they come into contact with the respective obstacle.

Vibration compensation is used for the proper positioning of the input module and is particularly important if a chin or lip control is used. Effortless driving is possible only if it is aligned precisely. Joysticks can detect vibrations caused by ground conditions such as cobblestones and adjust the driving speed automatically if desired.

Gyroscope module is a stabilization program that offers users effortless driving it eliminates inconvenient driving corrections and enables precise maneuvering on various surfaces and slopes. A gyroscope is also recommended when using digital inputs such as switch controls. The control units allow you to individually adjust the driving parameters.



Features:

  • Modern Design
  • Perfect maneuverability
  • Compact design
  • Excellent directional stability, even at higher speeds
  • Flexible center of gravity distribution
  • Good drive wheel traction when driving up and down slopes
  • Ideal for indoor and outdoor use
  • Easily navigate curbs
  • User comfort
  • Postural stability
  • 100-hour test during development
  • Vibration compensation
  • Gyroscope module
  • Slower driving on curves
  • Quick mobile service
  • Postural stability
  • Caster swivel lock
  • 100-hour test during development
  • Crash tested
  • It comes complete with the full Mobility World support service.

FREE 1 MONTH INSURANCE WITH ALL OUR MOBILITY SCOOTERS.

FREE 12 MONTHS ON-SITE WARRANTY WITHIN OUR HOME ASSESSMENT AREA.

FREE ENGINEER DELIVERY, DEMONSTRATION, AND SET UP (WORTH £199.00) WITHIN OUR HOME ASSESSMENT AREA.

PART EXCHANGE WELCOME

CALL US TODAY TO ARRANGE YOUR FREE NO-OBLIGATION POWERCHAIR ASSESSMENT!

TEN°

The TEN° handheld control device constitutes a small ergonomic revolution providing secure positioning and preventing fatigue. The high resolution 3.5” colour display features modern and easy-to-understand imagery. Additionally, the innovative rotary dial with a 10° rotation angle permits fast regulation of the speed whilst the housing is extremely robust and available in various colours.

  • Innovative jog wheel, for fast speed selection
  • Soft hand pad
  • Infrared- and Bluetooth interface
  • 3.5 mm jacks for external buttons
  • Control lever can be positioned freely
  • Solid aluminium housing in a colour of your choice

VR2

The tried-and-tested VR2 is our basic control unit, which can be programmed to suit your personal needs. The control panel is divided into a keypad, two LED displays and a joystick. A charging receptacle is located on the underside.

Special controls

Alternative types of input can be used when standard joysticks don’t offer the best option. In many cases, the mini joystick is mounted on an electronic swivel arm for control with the chin or lips. We would be happy to provide you with additional input options for controlling your wheelchair. These can of course be used to control the seat functions as well as your communication devices and your home environment.

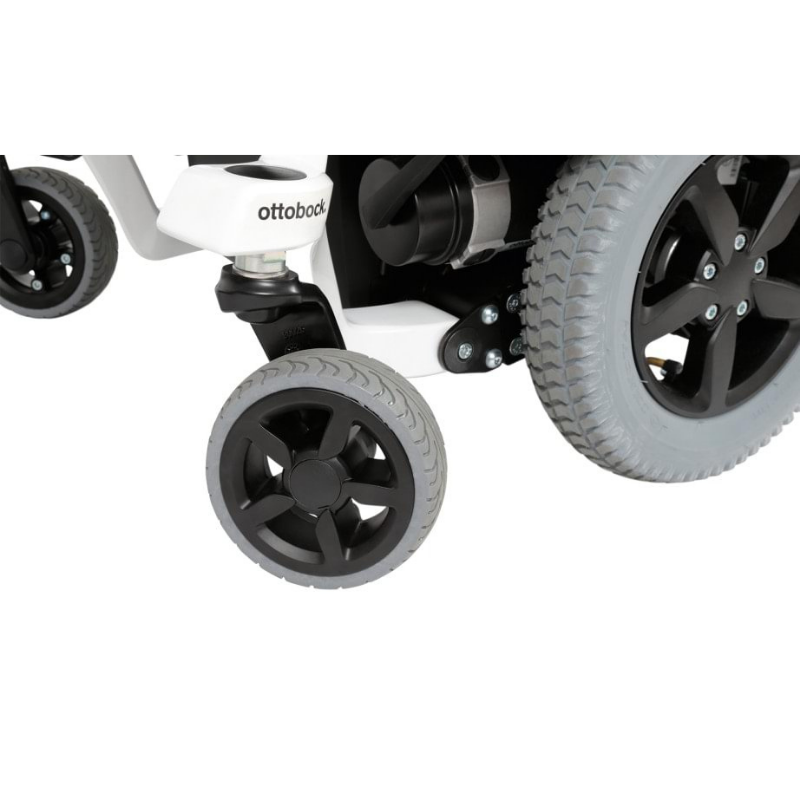

Anti-tip rollers

These wheels ensure that the wheelchair does not tip over to the front when driving downhill and braking hard (e.g. when the control unit is turned off). The flexible anti-tip rollers fold back when they come into contact with the respective obstacle so that your front-wheel drive Juvo maintains its climbing ability (e.g. on curbs).

Vibration compensation

The proper positioning of the input module is particularly important if a chin or lip control is used. Effortless driving is possible only if it is aligned precisely. Our joysticks can detect vibrations caused by ground conditions such as cobblestones and adjust the driving speed automatically if desired.

Gyroscope module

This module is a stabilisation programme that offers users effortless driving. The reliable directional stability of your wheelchair not only eliminates inconvenient driving corrections, but also enables precise manoeuvring on various surfaces and slopes. A gyroscope is also recommended when using digital inputs such as switch controls. It is part of the basic equipment of the front-wheel drive Juvo in conjunction with the TEN° control unit.

Transportaton in a vehicle

All Juvo drive versions are tested and approved according to ISO 7176-19 for transporting the user in a vehicle while sitting in the wheelchair. Numerous head supports have now also been approved to remain on the wheelchair during transportation. For further information and options, please consult your specialist dealer or our technical field service

Quick mobile service

For consistent driving characteristics and a long service life, we recommend annual maintenance of the Juvo by a service specialist. In the unlikely case that the technician is unable to make the Juvo operational again right away, you will not have to do without your usual seat and its customised add-on components during the repair time. The chassis and seat can be easily separated, making it simple to replace the drive unit. The battery of the Juvo B5 / B6 can also be replaced quickly and easily by flipping the seat over.

Slower driving on curves

Our control units allow you to individually adjust the driving parameters. Safety-relevant values that prevent the wheelchair from tipping over on curves are strictly maintained. If the control unit registers a steering motion, for example, it automatically lowers the speed

Caster swivel lock



It’s true that driving backwards is rarely necessary with a manoeuvrable wheelchair, but it can't always be avoided, for example when exiting a lift or on ramps. The undesired and difficult-to-control steering motion that occurs when the power wheelchair changes driving directions can be suppressed with a caster swivel lock. This keeps the fixed caster wheels in their straight-ahead position. The lock can be ordered as an option in a manual or power version.



Speeds 6 / 7.2 / 10 / 14 km/h
Battery capacity 53Ah (C5) for Juvo B5, 63Ah (C5) for Juvo B6
Range (acc. to ISO 7176-4) 35 km
Control unit VR2 or Ottobock TEN°
Max. load capacity Chassis size 1: 140 kg
Chassis size 2: 160 kg
Obstacle negotiation capability Front-wheel drive: 100 mm
Rear-wheel drive: 65 mm, optional 100 mm
Climbing ability (ISO 7176-2) 10° / 17%
Overall width Chassis size 1: 600 mm
Chassis size 2: 640 mm
Seat height (depending on seating solution) 400–550 mm
Seat width 340–560 mm
Seat depth 340–500 mm
Back angle 0° to +30°
Seat tilt 45° power
Seat inclination -3° / 0° / 3° / 6°
Back height 450 / 550 mm
Arm support height 225–350 mm
Lower leg length 250–540 mm
Max. charging time 12 hours
Weight from 107 kg
