Ottobock Rare Wheel Drive Power Wheelchair Juvo B4 With VR2 or TEN° Controls
Ottobock Rare Wheel Drive Power Wheelchair Juvo B4 With VR2 or TEN° Controls
£4,395.00
View Similar ProductsJUVO B4 POWER RARE-WHEEL DRIVE WHEELCHAIR WITH VR2 OR TEN° CONTROLS
The Juvo B4 is the perfect power chair for outdoor use. Its permanent drive wheel suspension ensures a smooth ride on uneven surfaces, while its compact size makes it easy to navigate through narrow doorways and confined spaces. The curb climbing assist lever makes it easy to get in and out, and the chair is ready to use at any time while driving. A seat tilt function up to 45° ensures the best possible pressure redistribution and position changes at any time. Back support angle adjustment can play an important role in breathing and care.
➤ Curb climbing assist & Magnetic LED lighting for maximum comfort
➤ Drive wheel suspension & Anti-tipper rollers
➤ The rear-wheel-drive mobility base
➤ Variably adjustable seat (VAS)
➤ VR2 OR TEN° and Attendant control, for fast speed selection
JUVO B4 POWER RARE-WHEEL DRIVE WHEELCHAIR WITH VR2 OR TEN° CONTROLS
The Juvo B4 is the perfect power chair for outdoor use. Its permanent drive wheel suspension ensures a smooth ride on uneven surfaces, while its compact size makes it easy to navigate through narrow doorways and confined spaces. The curb climbing assist lever makes it easy to get in and out, and the chair is ready to use at any time while driving. A seat tilt function up to 45° ensures the best possible pressure redistribution and position changes at any time. Back support angle adjustment can play an important role in breathing and care.
➤ Curb climbing assist & Magnetic LED lighting for maximum comfort
➤ Drive wheel suspension & Anti-tipper rollers
➤ The rear-wheel-drive mobility base
➤ Variably adjustable seat (VAS)
Read more
Couldn't load pickup availability
Home Delivery
Available InStore
Express Delivery
Financing Available
Need Help to place your order
Contact us 01462 708830
A question about your order?
Our customer service is here for you between 9am and 5pm from Monday to Friday on0208 424 2512 or email
Product Information
JUVO B4 POWER RARE-WHEEL DRIVE WHEELCHAIR WITH VR2 OR TEN° CONTROLS

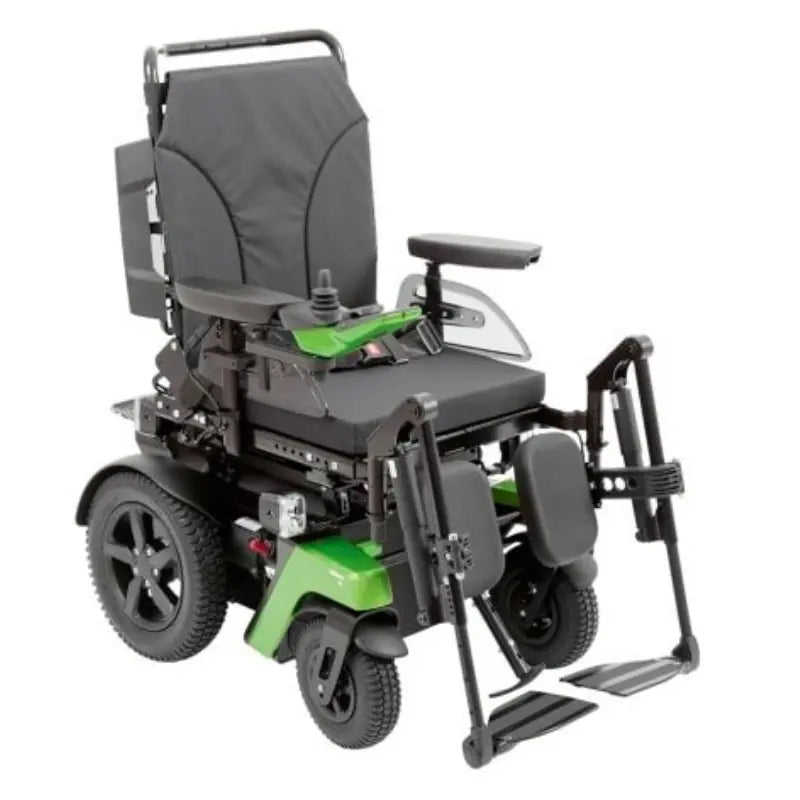

The Juvo B4 rear-wheel drive power chair offers maximum safety and comfortable damping characteristics for outdoor use and compact size and maneuverability for indoors. It provides a smooth ride on uneven surfaces thanks to the permanent drive wheel suspension and the compact small size of the chair makes it easy to drive through narrow doorways and navigate in confined spaces.
B4 features a modular design and offers a high level of flexibility. Customers can choose from the options and features for the mobility base, seating unit, and control device resulting in a modern and customized power chair to satisfy any taste. Variably adjustable seat (VAS) or the TEN° control device can also be selected.
The curb climbing assist is mounted at the front in the centre and is ready to use at any time while driving. When getting in and out, the lever can be engaged at the rear to provide more space for the transfer.
A seat tilt function up to 45° ensures the best possible pressure redistribution and position changes at any time. Back support angle adjustment can play an important role in breathing and care.
Features:
- Modern Design
- Perfect maneuverability
- Compact design
- Excellent directional stability, even at higher speeds
- Mobility base
- Drive wheel suspension
- Anti-tipper rollers
- Curb climbing assist
- Magnetic LED lighting
- Power seat functions
- VR2, TEN° or Attendant control
- Standard seat
- Variably adjustable seat (VAS)
- Contour package
- Baxx line seat cushions
- Crash tested
- It comes complete with the full Mobility World support service.
FREE 1 MONTH INSURANCE WITH ALL OUR MOBILITY SCOOTERS.
FREE 12 MONTHS ON-SITE WARRANTY WITHIN OUR HOME ASSESSMENT AREA.
FREE ENGINEER DELIVERY, DEMONSTRATION, AND SET UP (WORTH £99.00) WITHIN OUR HOME ASSESSMENT AREA.
PART EXCHANGE WELCOME
CALL US TODAY TO ARRANGE YOUR FREE NO-OBLIGATION POWERCHAIR ASSESSMENT!

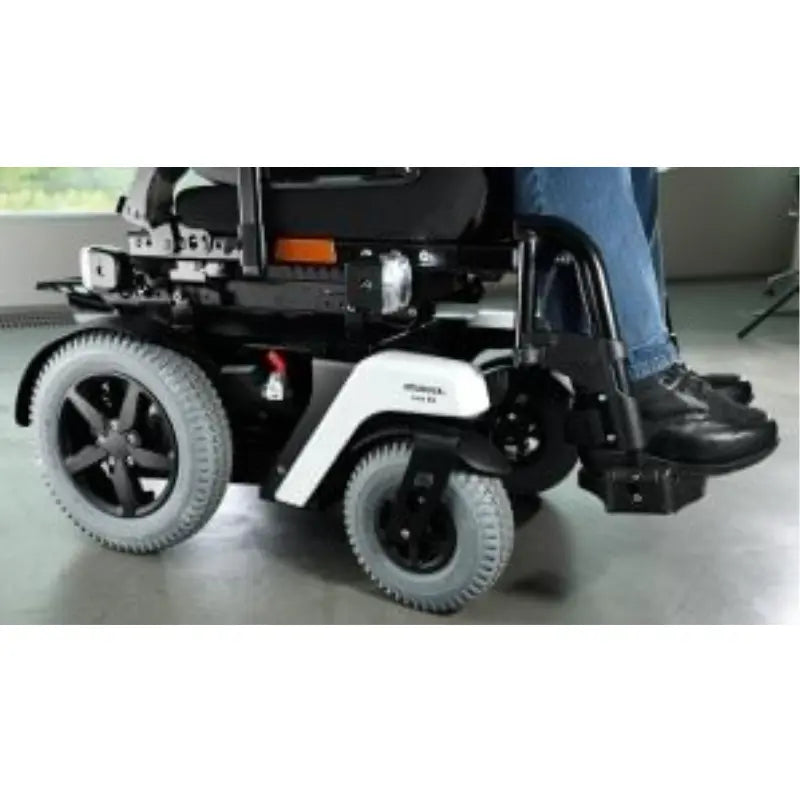

Mobility base |
The rear-wheel-drive mobility base of the B4 is robust, durable, and requires little maintenance. Driving through narrow doorways and navigating in confined spaces is made easier by the small outside dimension with a width of just 59 cm. Smaller wheel sizes are available for indoor use. |

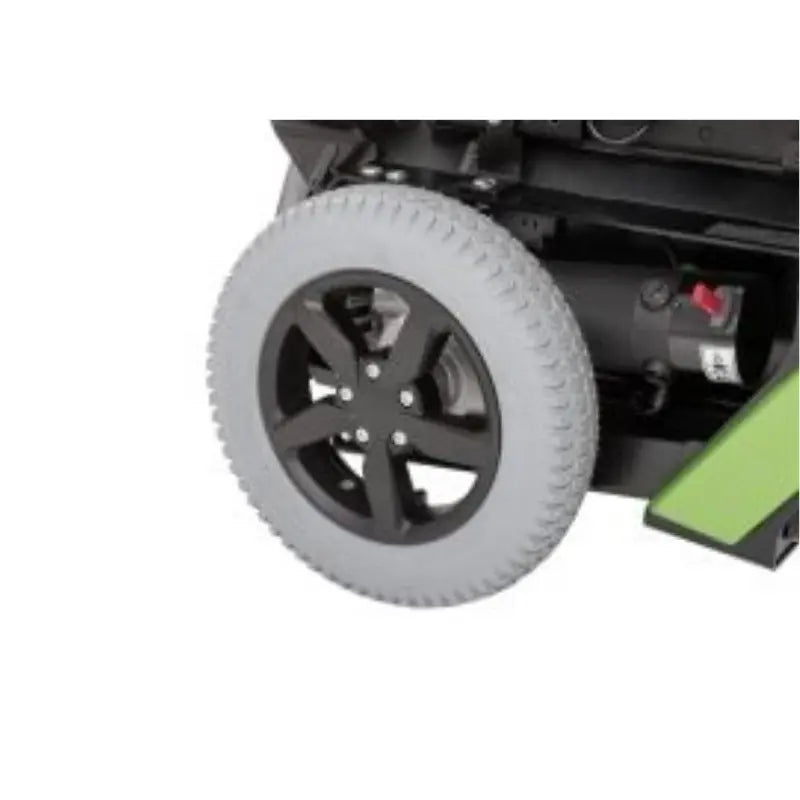

Drive wheel suspension |
Permanent drive wheel suspension compensates for uneven surfaces and ensures enhanced safety and comfortable damping. This can be further optimized with an additional front suspension. |

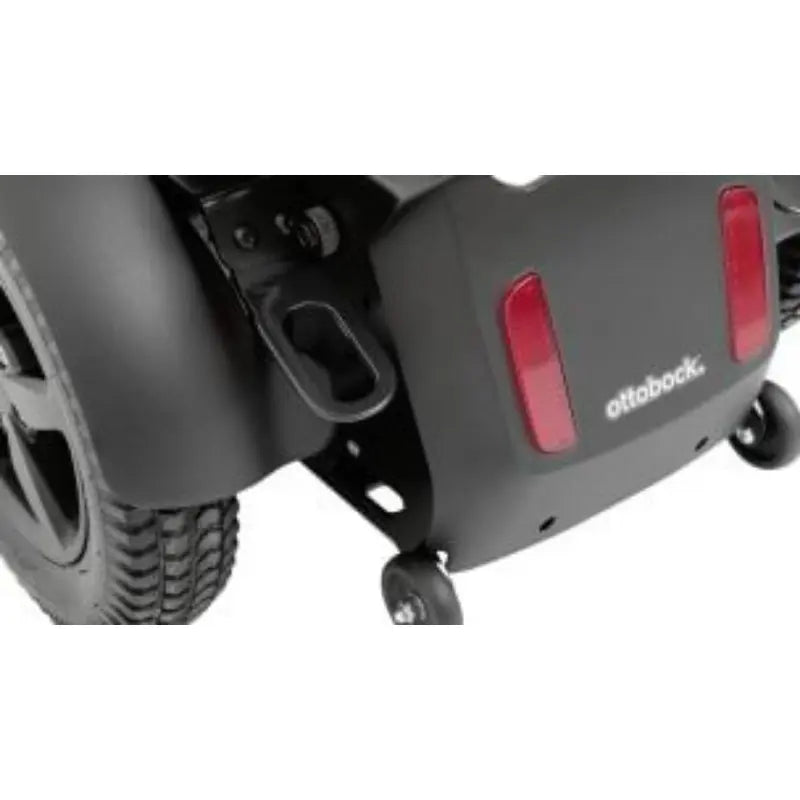

Anti-tipper rollers |
Integrated anti-tipper rollers ensure enhanced safety and protect against damage when driving backward. |

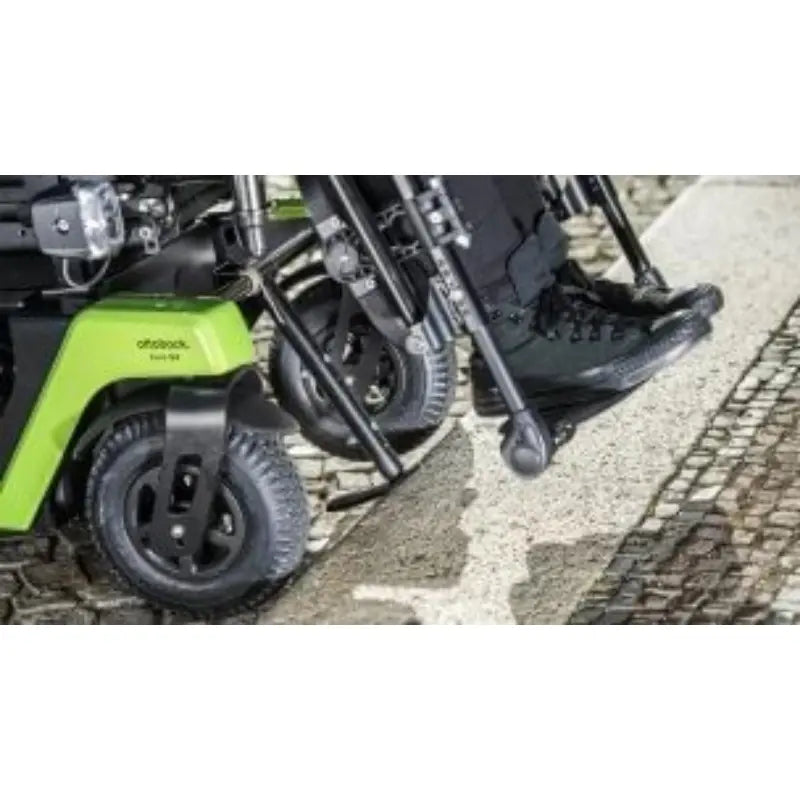

Curb climbing assist |
This option also makes it possible to cross higher obstacles such as curbs. The curb climbing assist is mounted at the front in the centre, and is ready to use at any time while driving. When getting in and out, the lever can be engaged at the rear to provide more space for the transfer. |

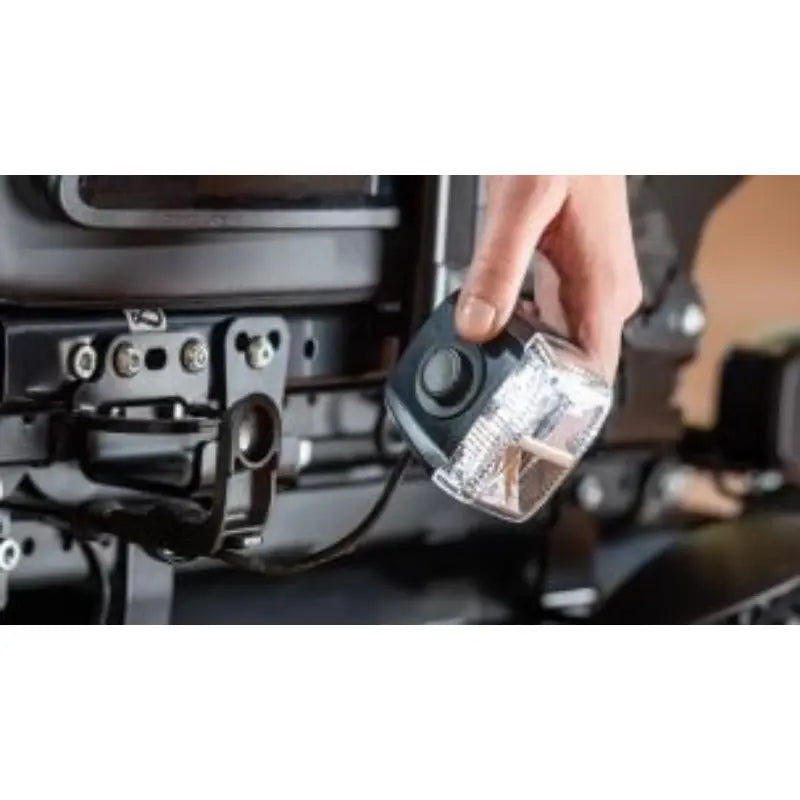

Magnetic LED lighting |
In case of impacts, for example on door frames or furniture, the special magnetic holder protects the clear glass housing against damage or loss as the LED lighting simply hangs by the cable, making it easy to reinstall. This unique solution also allows the LED lamp to be used as a flashlight. Another plus for enhanced safety: when the Juvo B4 is switched on, the footpath lighting automatically illuminates dark environments. |

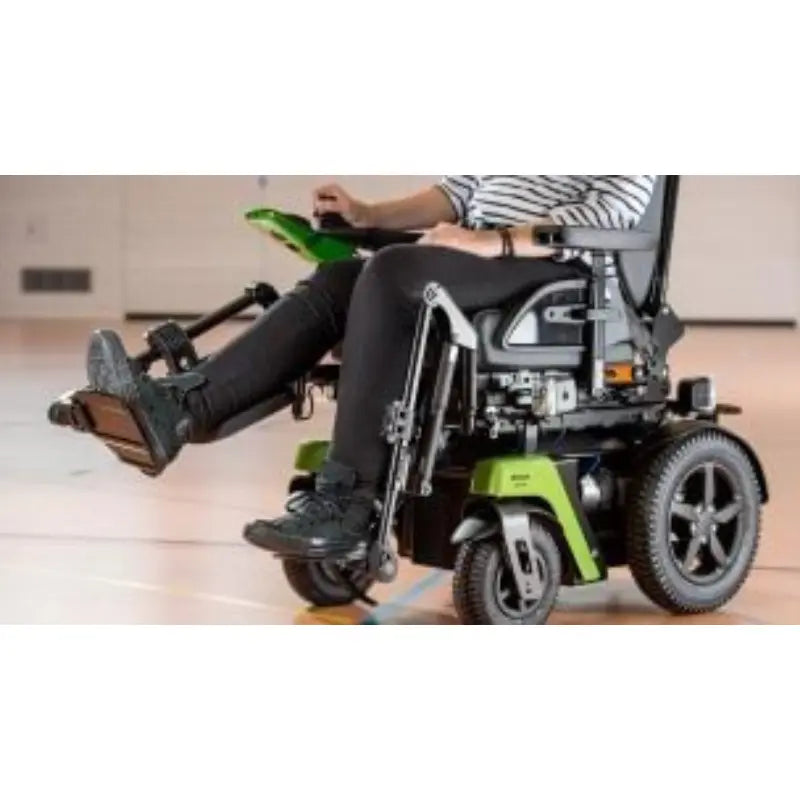

Power seat functions |

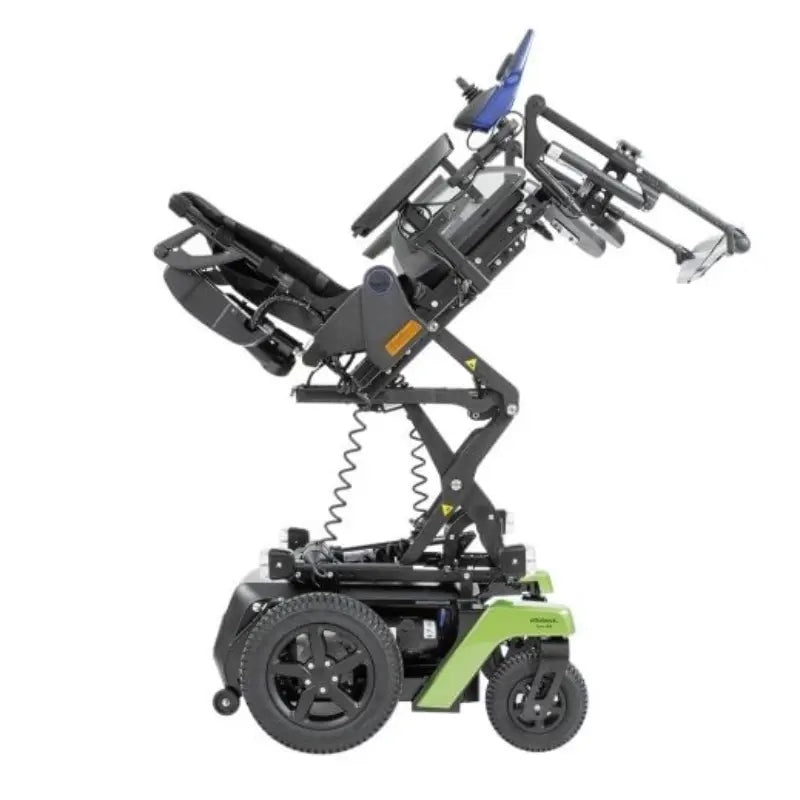

These elementary functions play a key role in your everyday independence. A seat tilt function up to 45° ensures the best possible pressure redistribution and position changes at any time. Back support angle adjustment can play an important role in breathing and care. A 35 cm seat height lift provides appropriate support to compensate for height differences during transfers or in other everyday situations, and for communication at eye level. |

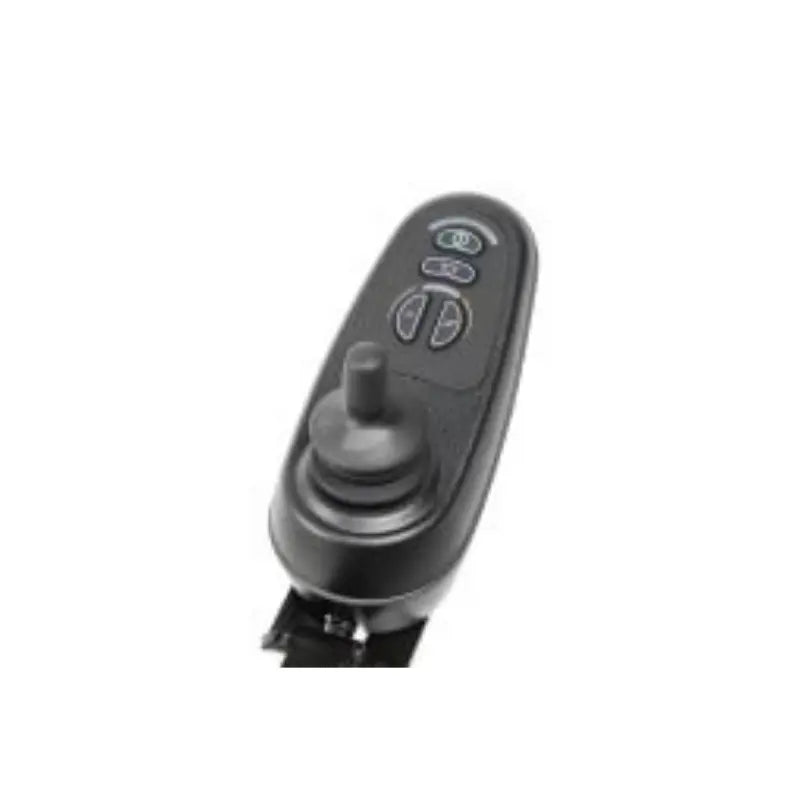

VR2 |
The tried-and-tested VR2 is our basic control device, which can be programmed to suit your personal needs. The control panel is divided into a keypad, two LED displays and a joystick. A charging receptacle is located on the underside |

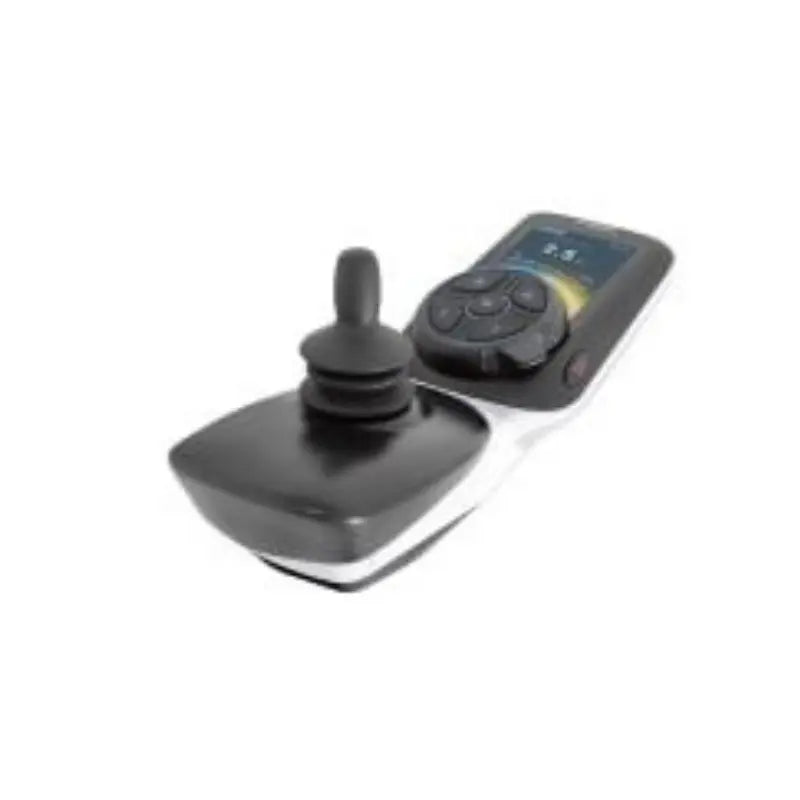

TEN° |
The TEN° handheld control device constitutes a small ergonomic revolution for you as a user: for example, a soft hand support prevents premature fatigue. The innovative rotary control with a 10° rotation angle makes it easy to access the speed regulation. The high-resolution 3.5" colour display gives you a good overview of the user interface. |

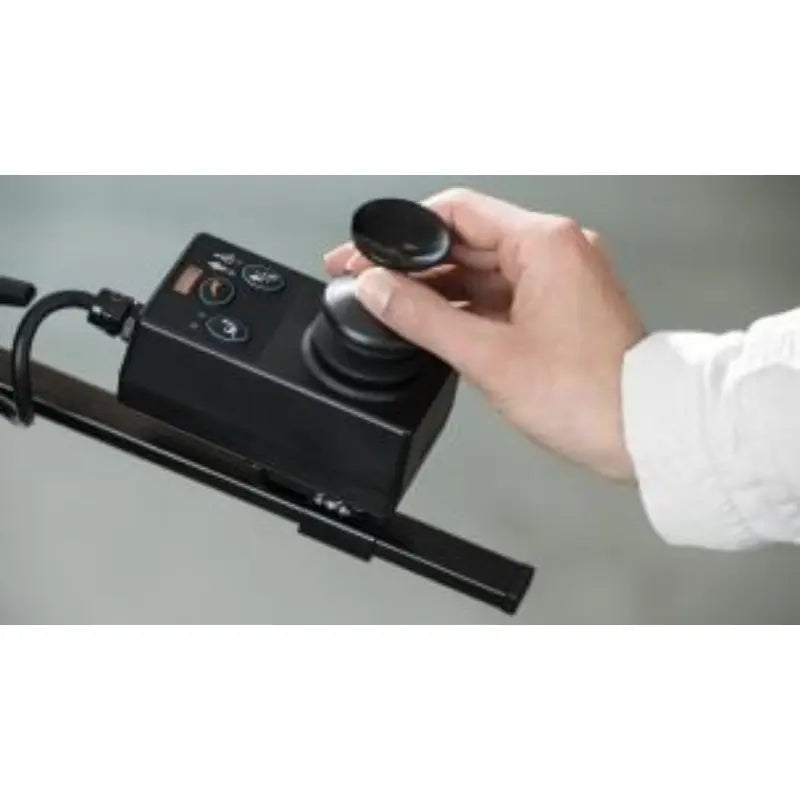

Attendant control |
The VR2 and TEN° can also be combined with an attendant control device. It can be positioned on the back of the wheelchair or on the left or right side. Another person can then provide assistance during driving. It also permits easy operation of the power seat adjustments. |

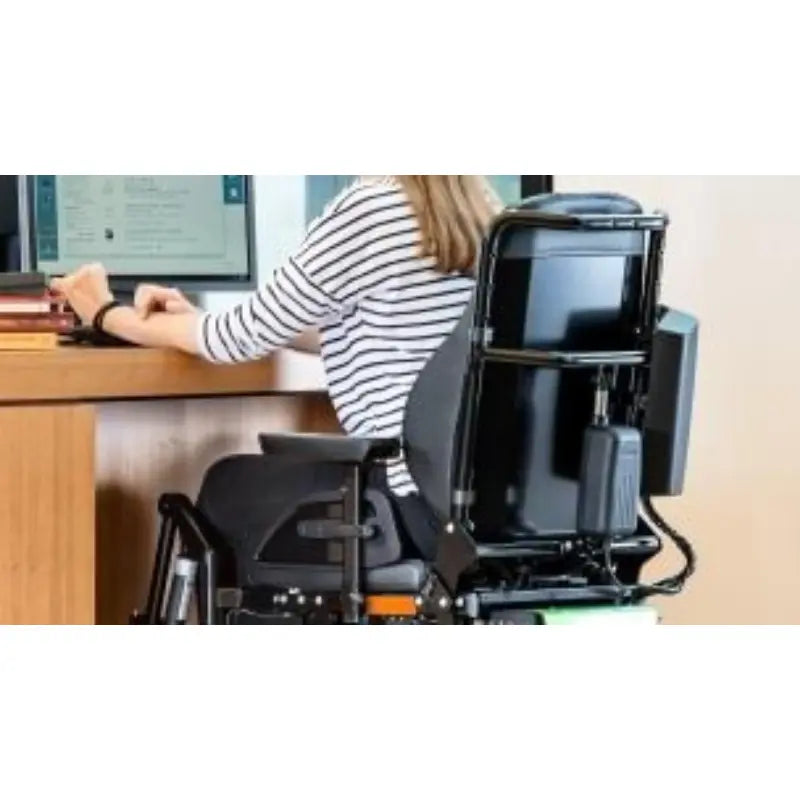

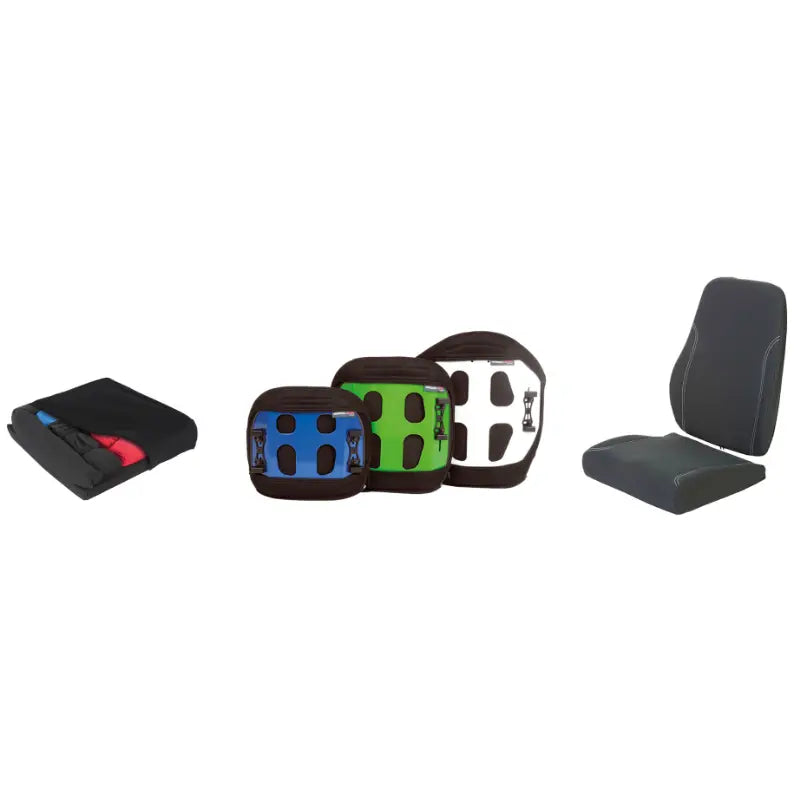

Standard seat |
The seat width can be adjusted via the arm supports, the side panels provide stable support, and the height and depth of the soft arm support pads can be adjusted. The manually adjustable 30° back support can also be power-operated as an option. The back support frame can be folded forward onto the seat bottom for storage or transportation. Leg supports in various versions can be selected for all seating systems. |

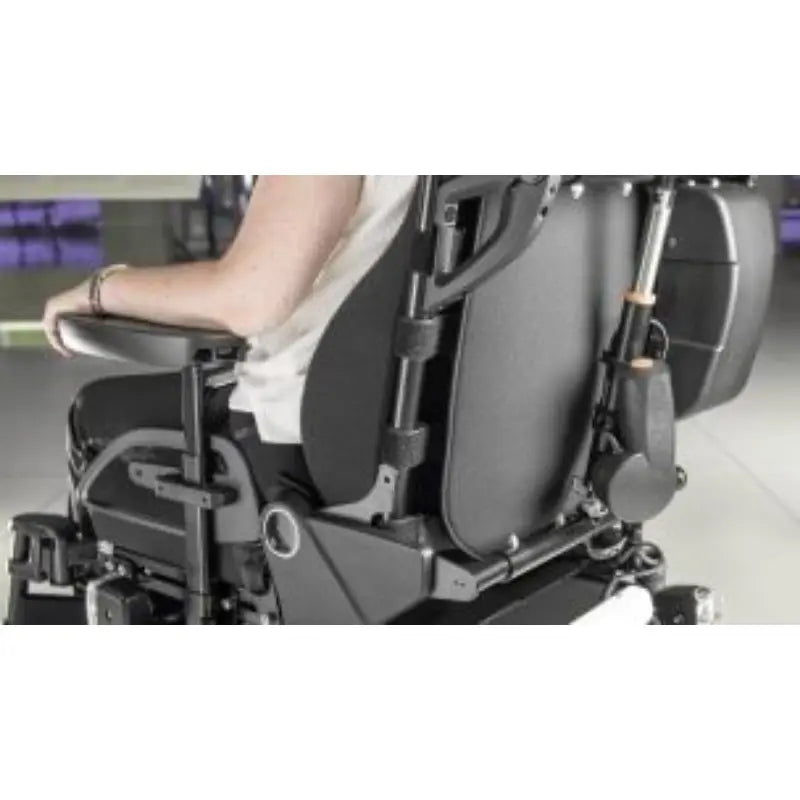

Variably adjustable seat (VAS) |
The new VAS (variably adjustable seat) can be adjusted down to the centimeter. It comes with an adjustable padded back support and a flat seat cushion as standard equipment. The Ergo Joint back support angle adjustment is almost entirely free from uncomfortable shear forces. |

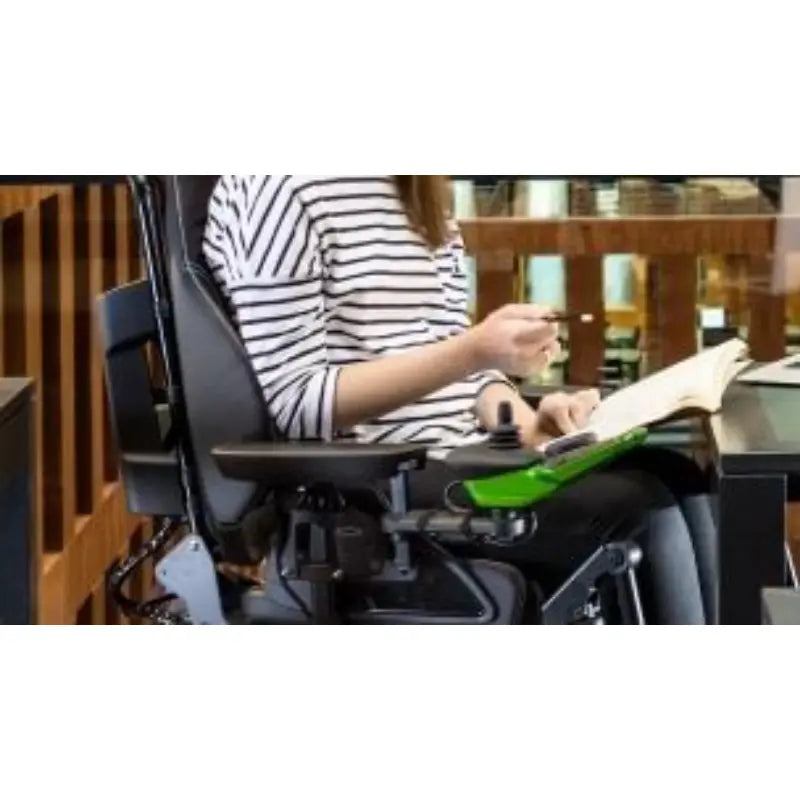

Contour package |
Our collaboration with physiotherapists and occupational therapists has resulted in an optimally shaped seat that is available for ordering in a wide range of sizes and contours. The front seat base is formed by the anatomically shaped seat surface, which offers a high level of lateral stability. Moulded to the shape of the thigh, the cushion helps relieve the hip joint. An integrated “ramp” also aids the optimal positioning of the pelvis. Together with the back support pad, it helps to actively straighten the pelvis. Both components of the contour package can be combined with the standard and VAS seating solutions |
Baxx line |
The Baxx line consists of ergonomically shaped, rigid back shells offering you a high level of stability and sitting comfort for everyday use. Two different heights and three contours allow for individual adaptation to your requirements. The top of the back is padded to make sitting especially comfortable. Large recesses in the back shell make it lightweight and improve the sitting “climate” thanks to good ventilation. The aluminum back shell is available in a variety of colours. The Baxx line products can be combined with the VAS. |
Shape Custom Contoured Seating |
Shape Seating Systems are the only solution for patients with complex needs as the design and accessories can be fully customized to suit the needs of the user. |
| Speeds | 6/7.2/10 km/h |
| Rated battery capacity | AGM 53 Ah (C5), 62 Ah (C20) Gel 63 Ah (C5), 74 Ah (C20) |
| Driving distances ranges (according to ISO 7176-4) up to | 35 km with AGM battery 53 Ah (C5), 62 Ah (C20) 45 km with gel battery 63 Ah (C5), 74 Ah (C20) |
| Control device | VR2 or TEN° |
| Max. load | 160 kg |
| Obstacle height the wheelchair is able to overcome | 50, 85 or 90 mm optional |
| Climbing ability (according to ISO 7176-2) | 7° (12%) |
| Overall width | 585–595 mm |
| Min. turning radius (acc. to ISO 7176-5) from | 800 mm |
| Seat height (depending on seating solution) | 410–570 mm |
| Seat width | 340–560 mm |
| Seat depth | 340–580 mm |
| Back support angle | -9° to +30° mechanical 0° to +30° power |
| Seat tilt | 20°/45° power |
| Seat inclination | -3° / 0° / 3° / 6° / 9° |
| Back support height | 370–550 mm |
| Arm support height | 200–400 mm |
| Lower leg length | 150–540 mm |
| Max. charging time | 12 h |
| Weight when empty from | 93.5 kg |
| Seat depth | 370 – 530 mm |
| Back angle | up to 45°, electric |
| Seat tilt | up to 15°, electric |
| Back height | 550 – 650 mm |
| Armrest height | 160 – 260 mm |
| Armrest length | 370 mm |
| Lower leg length | 390 – 520 mm |
| Charging time | max. 10 hours |
| Transport ISO 7176-19 | passed |
